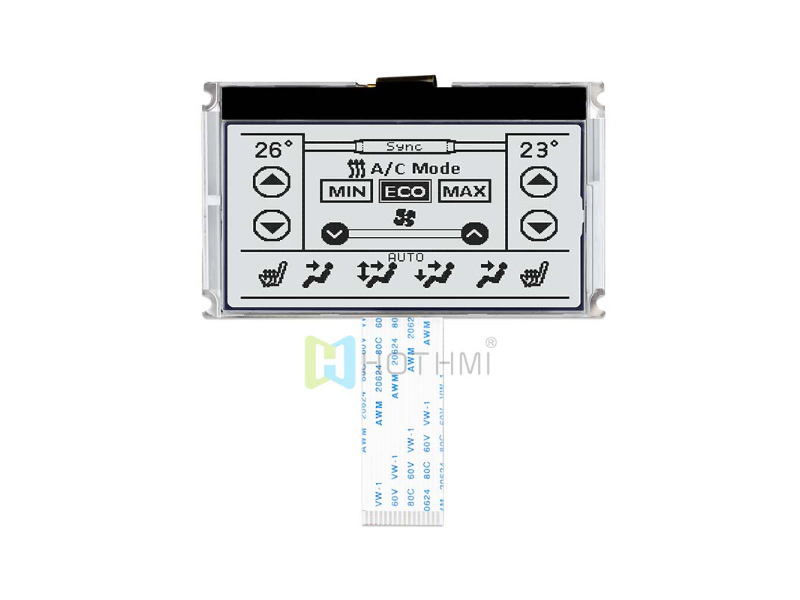

COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 inch 128x64 dot matrix graphic LCD COG display | FSTN+ | RGB backlight | ST7567 | Arduino HTG12864-129-35S-30C05 | COG Graphic LCD | 128x64 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41x0.37 | 6H | FSTN+ red green blue | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.4 inch 128x64 dot matrix graphic LCD | STN-blue | ST7567 | Arduino HTG12864-129-25W-30C05 | COG Graphic LCD | 57.5x41.7x4.3 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41x0.37 | 6H | STN- white backlight | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.4 inch yellow-green graphic LCD 128x64 COG LCD | STN+ | ST7567 | Arduino HTG12864-129-11Y-30C05 | COG Graphic LCD | 128x64 |
|
57.5*41.7*4.3 | 54.0x31.0 | 47.33x26.21 | 0.41x0.37 | 6H | STN+ yellow-green | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.4 inch Graphic LCD COG | 128x64 Graphic LCD | STN+ | Gray background with blue characters | ST7567 | Arduino HTG12864-129-11W-30C05 | COG Graphic LCD | 128x64 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41*0.37 | 6H | STN+ 灰底藍(lán)字 | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.4 inch 128X64 Graphic COG Graphic Display | DFSTN- | White on Black | ST7567 | Arduino HTG12864-129-41W-30C05 | COG Graphic LCD | 128x64 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41*0.37 | 6H | DFSTN- 白色背光 | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.4 inch128x64 COG Graphic Display | FSTN+ | Black Text on White Background | ST7567 | Arduino HTG12864-129-31W-30C05 | COG Graphic LCD | 47.33*26.21 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41x0.37 | 6H | FSTN+ White backlight | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7567 | |
| 2.4 inch 128X64 Graphic LCD COG | 128x64COG Display | STN+ | Yellow-green Backlight | ST7567 | Arduino HTG12864-129-01Y-30C05-V01 | COG Graphic LCD | 128x64 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.41x0.37 | 6H | STN(+) Yellow-green | 30 PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.9inch 240X120 Graphic COG LCD Module SPI FSTN+ Display With White Backlight/HTM240120B-31W-N3S-V01 | COG | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | Backlight color optional | FPC-16PIN | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1608 | |
| 2.9 Inch 240X120 Graphic COG LCD Module FSTN+ Display With White Backlight UC1608/HTM240120B-31W-N3P-V02 | COG | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | Backlight color optional | FPC-16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1608 | |
| 128x64 Russian lexicon Graphics COG LCD FSTN+ display with white side backlight HTG12864T02A-31W-SPI-FONT | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 10pin | SPI | With Chinese, English text library | -20~70℃ | 3.3V | ST7567 |
