Product type：COG Graphic LCD
Show contents：57.5x41.7x4.3
Outline size(mm) ：57.5x41.7x4.3
Size of View Window(mm)：54.0x31.0
Display size(mm) ：47.33x26.21
Point spacing(mm)：0.41x0.37
Product application：Instruments
Visual angle：6H
Backlight type or brightness：STN- white backlight
Connection PIN Number：30PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：ST7567

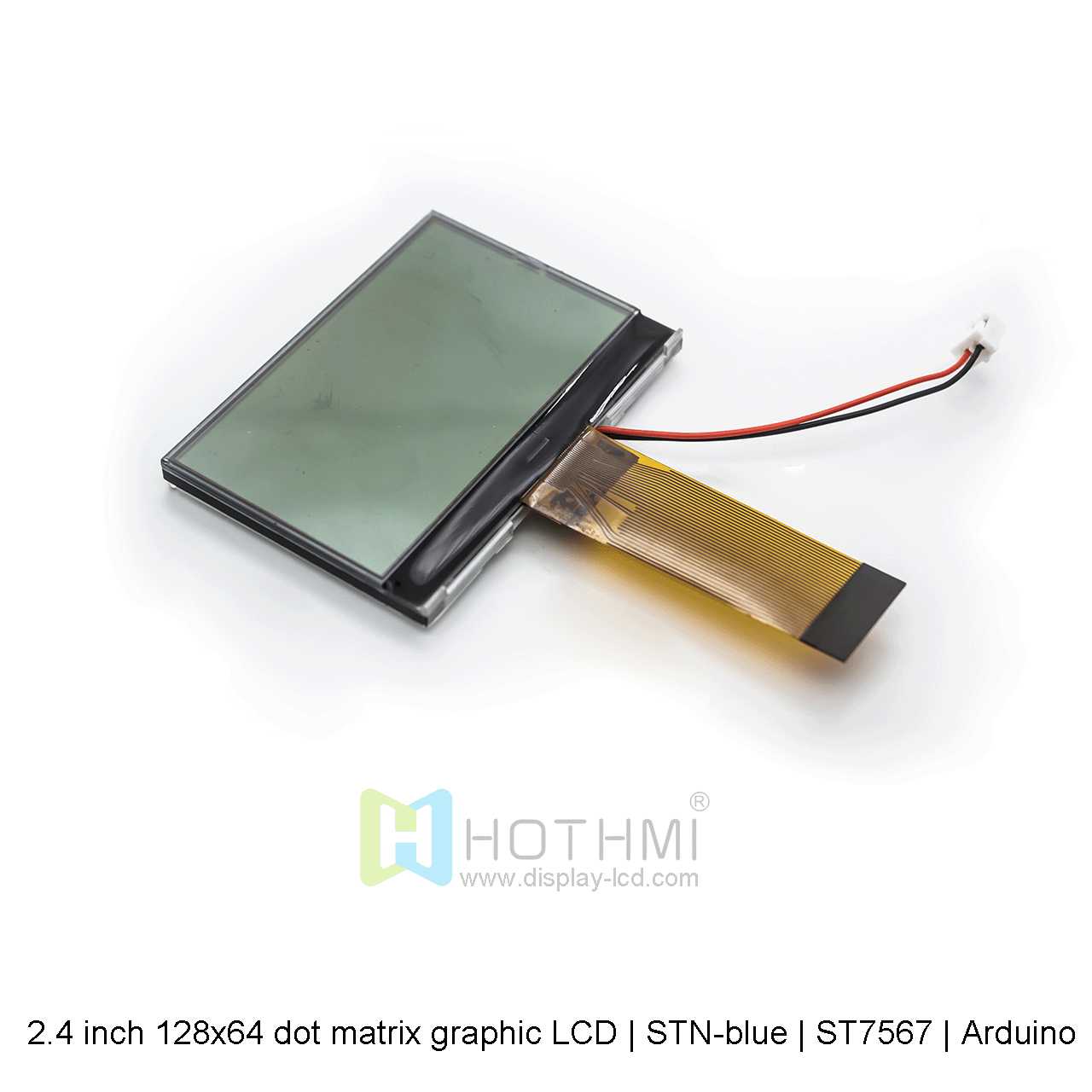

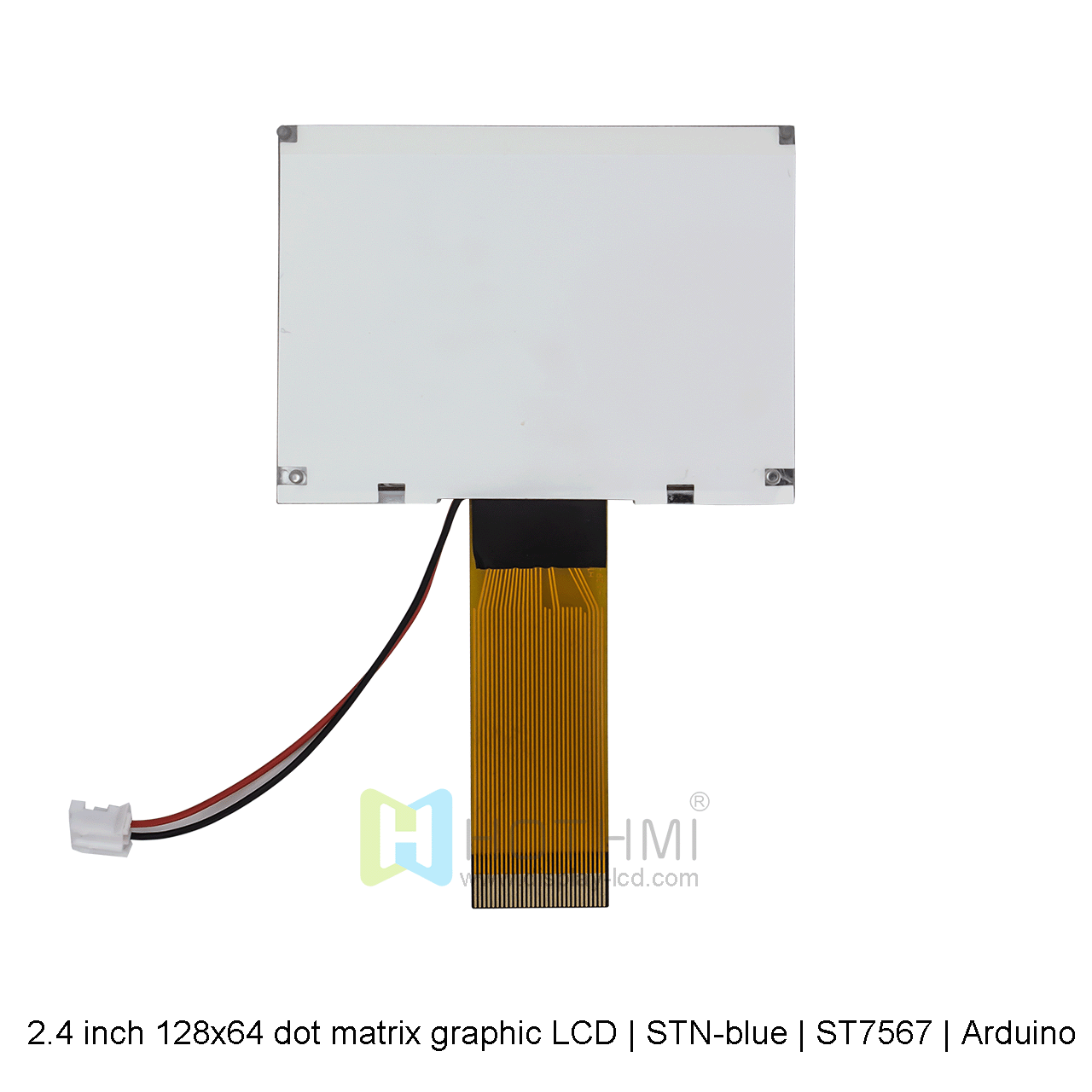

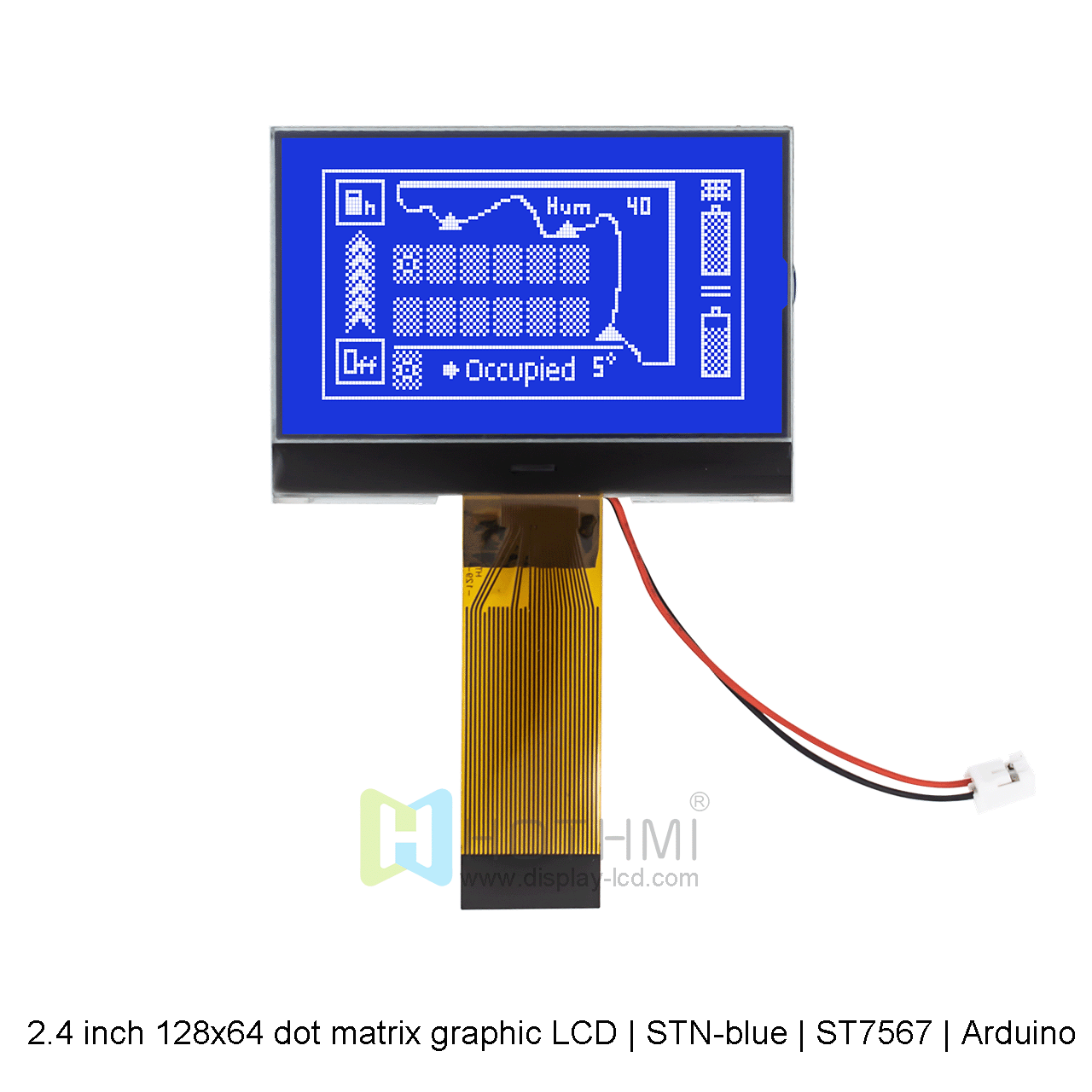

Hot Display 2.4 inch blue graphic COG | 128x64 dot matrix graphic LCD | STN-blue | blue background white | ST7567 | Arduino . This fully transparent LCD display is carefully designed to provide optimal visibility in various lighting conditions in many different environments. With the full transparency of the polarizer, the backlight is fully transmitted, which improves the brightness of the display. Make the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
Custom LCD Size: Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm. |
Customize the number of dots and display icon content: Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs. |
Backlight color and structure customization: There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference. |
Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc. |
Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc. |
