產品搜尋
類型：TFT橫屏

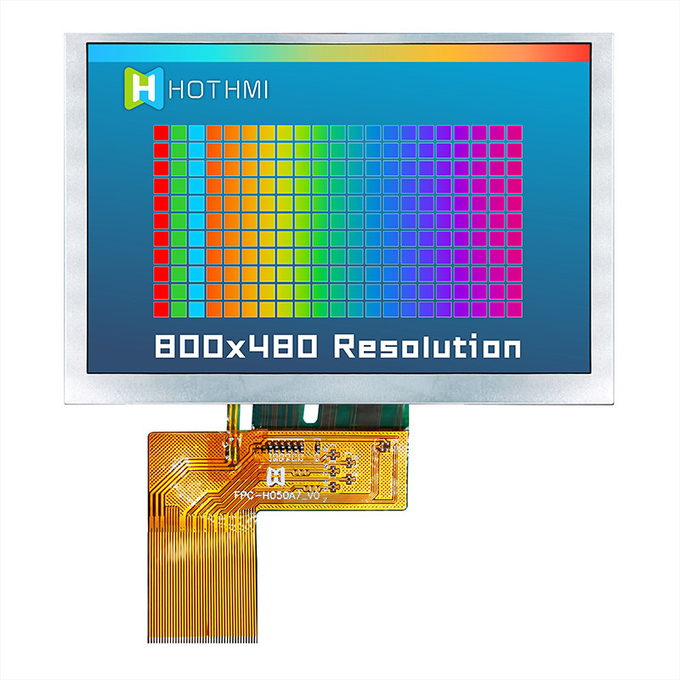

顯示像素：800x480
外形尺寸 ：120.70x75.80x2.90
VA尺寸：5.0
AA尺寸 ：5.0
有效尺寸mm：108.00x64.80
應用：車載，醫療，工控

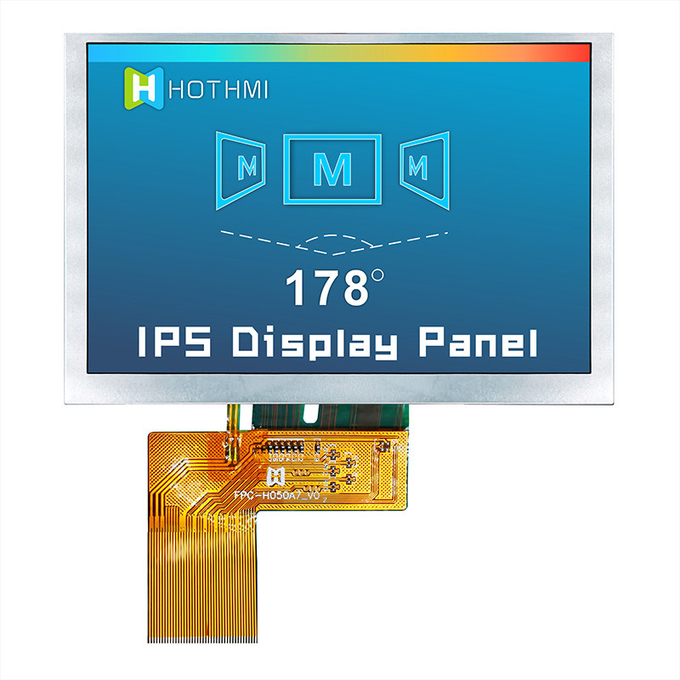

視角：全視角

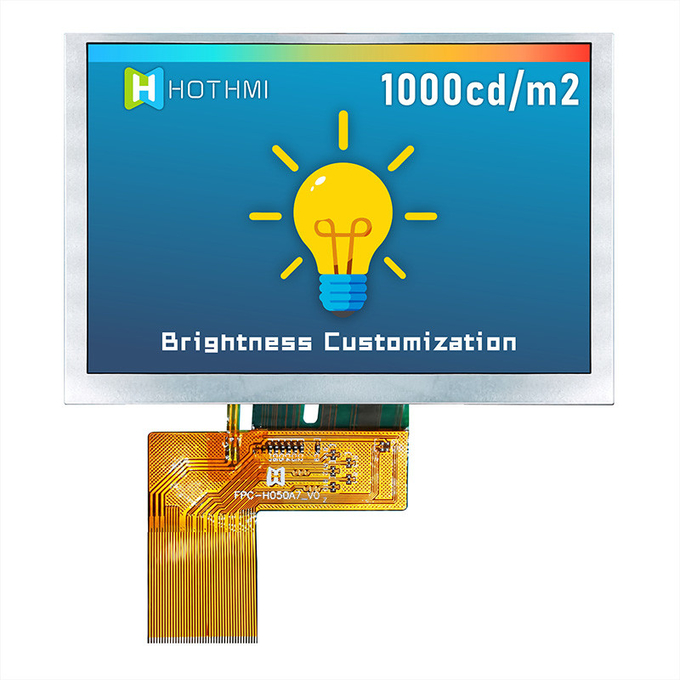

背光/亮度：1000cd/m2
引腳：40pin

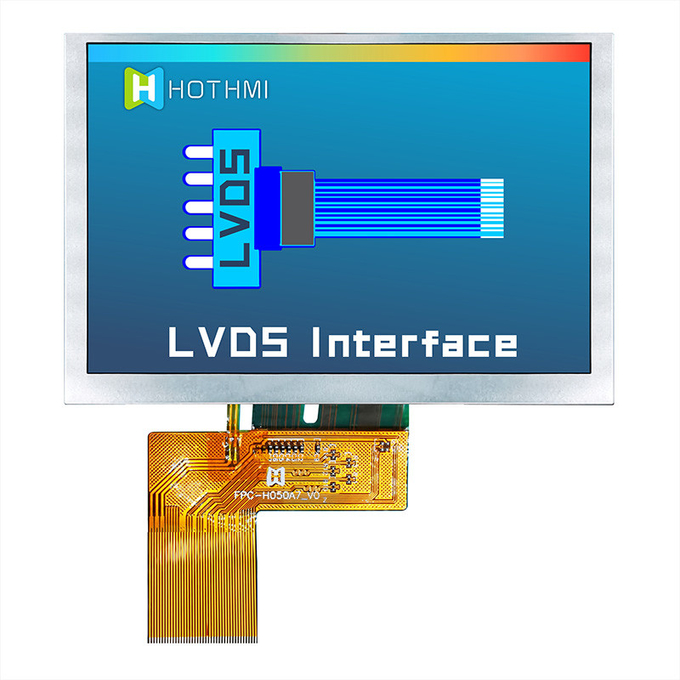

接口方式：LVDS

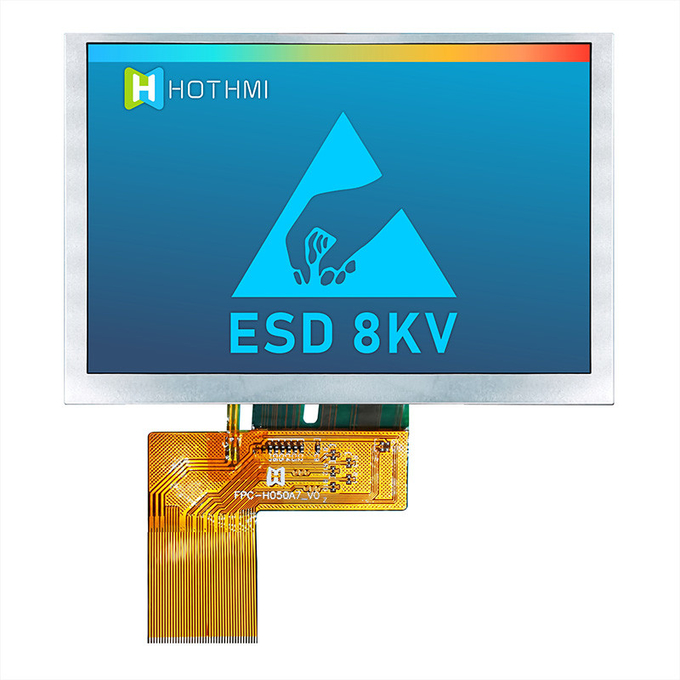

特殊說明：抗靜電ESD 8KV
工作溫度：-30~85℃
供電電壓：3.3V

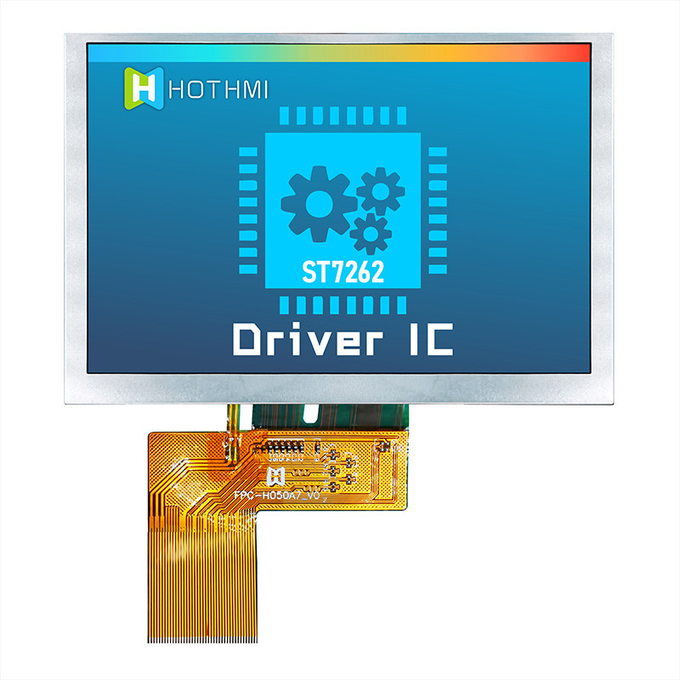

驅動芯片：ST7262

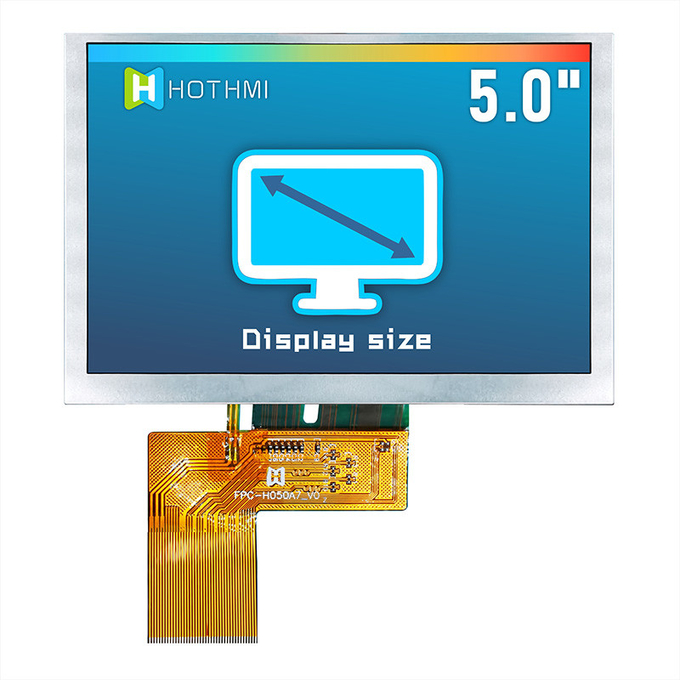

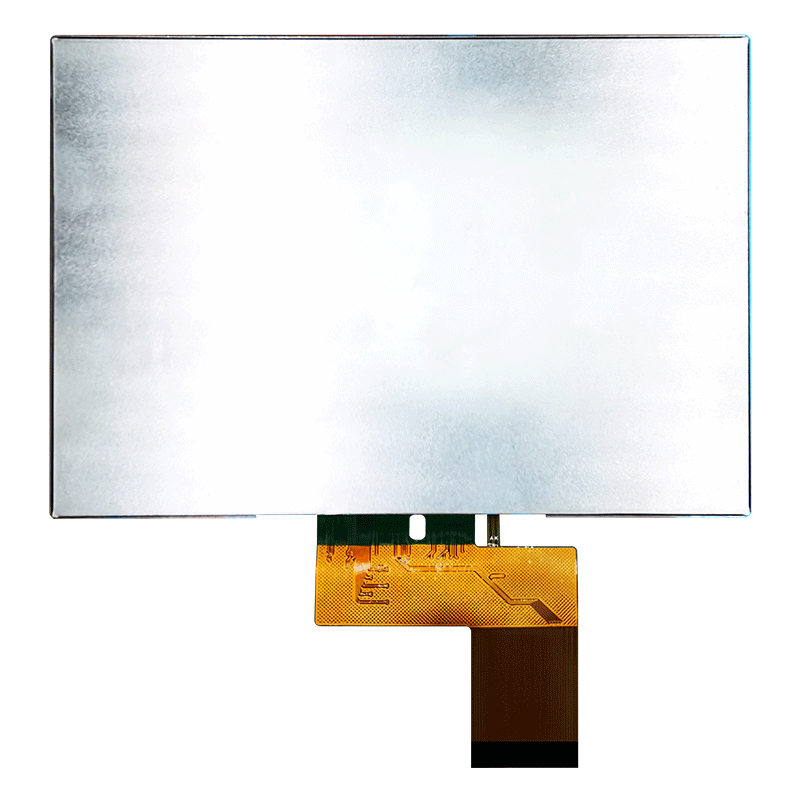

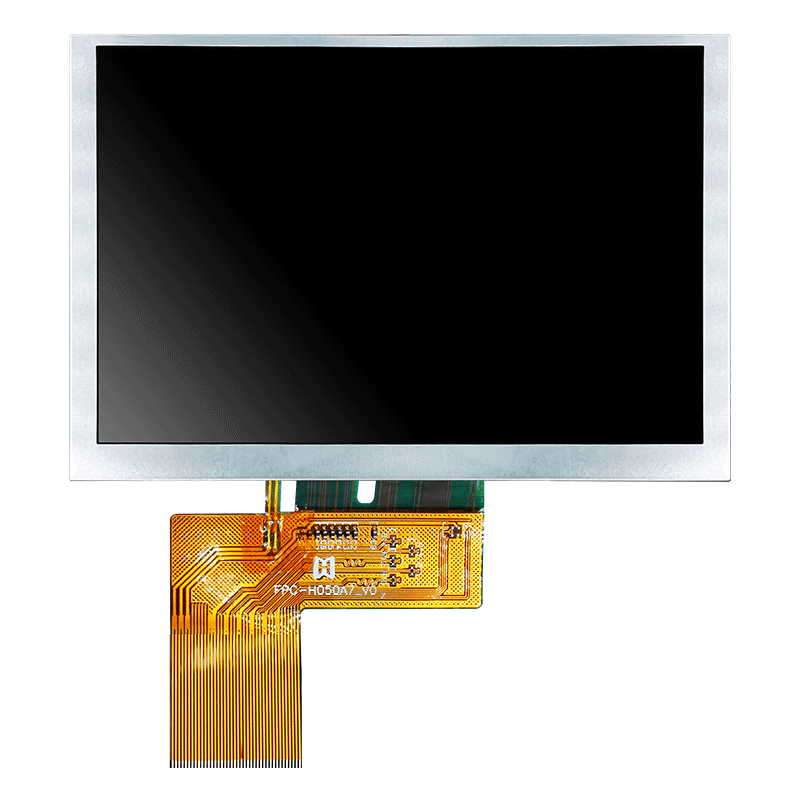

隆重推出 TFT-H050A7SVISTKN40，這是一款來自值得信賴的 TFT LCD 顯示器制造商的高品質 5.0 英寸 IPS LCD 顯示器。 該顯示器具有令人印象深刻的 800x480 分辨率，可提供清晰而生動的視覺效果，一定會增強任何項目。

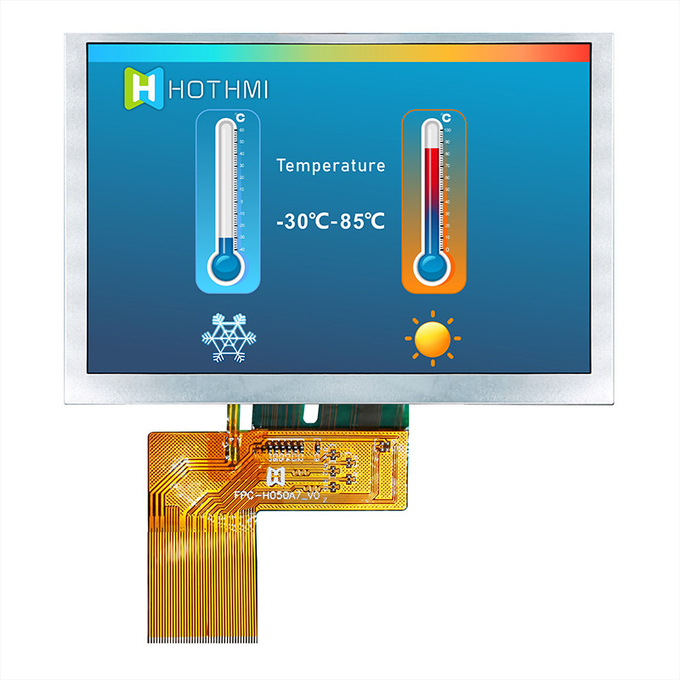

但這款顯示器的與眾不同之處在于它能夠在 -30℃ 至 85℃ 的廣泛溫度范圍內使用。 無論您是在嚴寒還是酷熱的環境中工作，這款顯示器都將保持可靠和實用。
由于采用了陽光下可讀技術，即使在陽光直射下也能輕松查看該顯示屏，是戶外應用的完美選擇。
憑借其耐用的結構和一流的性能，TFT-H050A7SVISTKN40 是任何要求最好的項目的完美顯示解決方案。
General Feature
Item | Standard Value | Unit | ||
Display Size | 5.0 | Inch | ||
Number of Pixels | 800(H)*3(RGB)* 480(V) | dots | ||
Active Area | 108.00x64.80mm | mm | ||
Outline Dimension | 120.70x75.80x2.90 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | LVDS 3 Lane/4 Lane | - | ||
Driver IC | ST7262 | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -30 ～ +85 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 ~ 2 | LEDA | LED anode |
| 3 ~ 4 | LEDK | LED cathode |
| 5 ~ 6 | VCI | 3.3V power supply |
| 7 | NC | Not connected |
| 8 | MODE | Sets LVDS data format |
| 9 | LENS | Sets LVDS lane |
10 |
SHLR | Horizontal scanning direction control pin (L: from right to left ; H: from left to right) |
11 |
UPDN | Vertical scanning direction control pin (L: from down to up ; H: from up to down ) |
| 12 ~ 14 | GND | Power supply ground |
| 15 | DCKN | LVDS Negative clock signal (-) |
| 16 | DCKP | LVDS Positive clock signal (+) |
| 17 ~ 18 | GND | Power supply ground |
| 19 | D3N | LVDS Negative data signal (-) |
| 20 | D3P | LVDS Positive data signal (+) |
| 20 | D3P | LVDS Positive data signal (+) |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

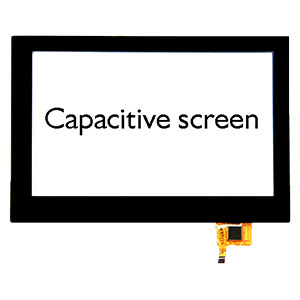

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

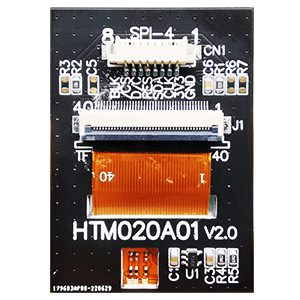

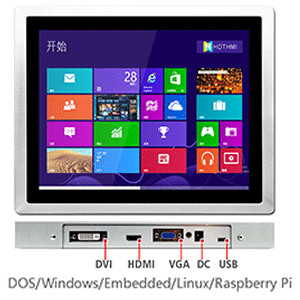

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
