Product type：TFT Module
Show contents：1280x400

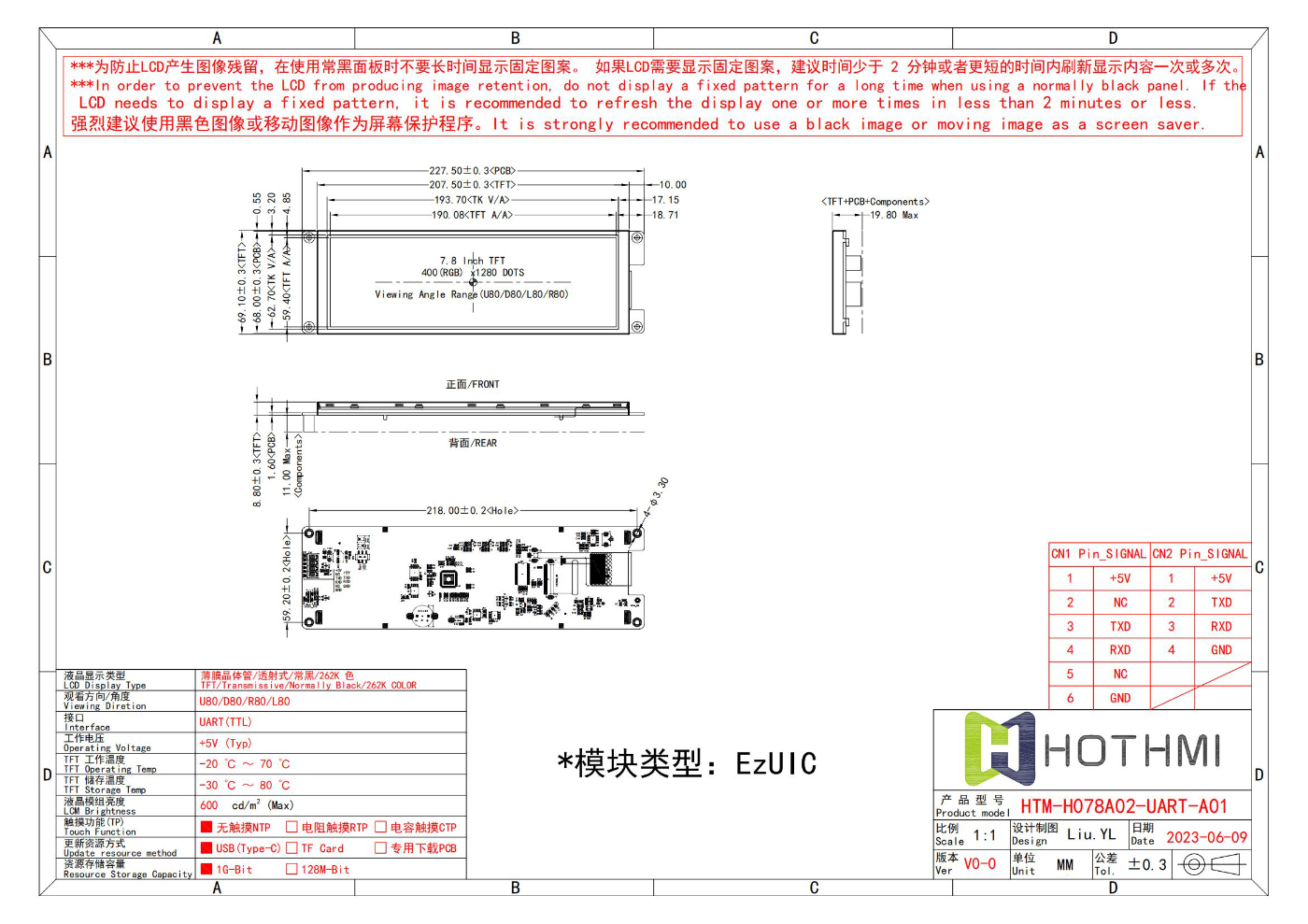

Outline size(mm) ：227.5x69.1x11.0
Size of View Window(mm)：7.84
Display size(mm) ：7.84
Effective size(mm)：190.08x59.40
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：600cd/m2
Connection PIN Number：FPC-10PIN
Interface mode：UART
Special instructions：With capacitive touch function
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：T.B.D
HOTDISPLAY UART display is an LCD screen that uses UART serial port for communication. The user sends instructions to the serial LCD screen through the single-chip microcomputer, and the serial port screen will automatically complete all operations of drawing on the LCD. Due to the simple operation, even people who do not know any programming can easily develop the human-computer interaction interface they want.
HOTDISPLAY UART display consists of two parts: the serial screen hardware and the attached serial screen software:
1. The hardware part includes processor, LCD screen, resistive touch screen or capacitive touch screen, FLASH storage, RS232 or 485 serial port chip, audio and video decoding chip, SD card slot, etc. Some models include WIFI, 4G, Bluetooth, voice recognition , face recognition, fingerprint recognition and other modules,
2. The operating software is generally divided into two parts, namely system software running on the UART display and interface development software UI Editor running on PC Windows operating system" ,UI EZUI for program debugging software.
The user first uses the UI Editor to make the "Project BIN file", and then downloads the compiled "Project BIN file" to the FLASH of the serial port display through the UART port or USB port or SD card of the UART display.
What are the application fields of UART Display?
HOTDISPLAY UART displays are widely used in industrial automation, electric power, telecommunications, environmental protection, medical care, finance, petroleum, chemical industry, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation rails, data centers, charging piles, electric power Dozens of industries and fields such as medical care, national defense security, and shared equipment.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris. |
