Product type：TFT LCD
Show contents：1440x540

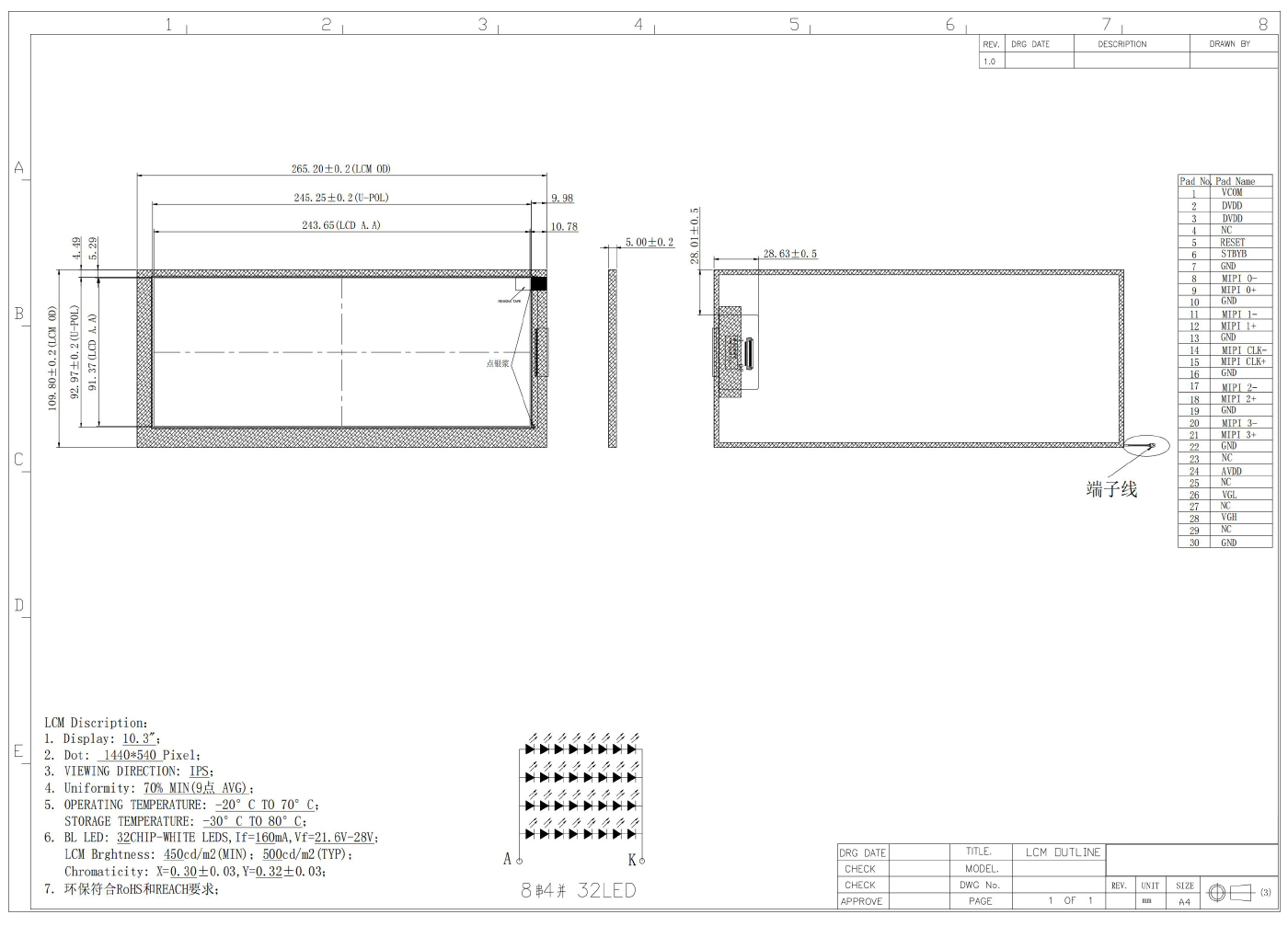

Outline size(mm) ：265.2×109.8×5.0
Size of View Window(mm)：10.3
Display size(mm) ：10.3
Effective size(mm)：243.65×91.37
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：450cd/m2
Connection PIN Number：FPC-30PIN
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：ST7701S
TFT-H103W01ZMINV5N30 is a 10.3-inch full-viewing IPS color LCD vertical screen strip display module, 1440x540 resolution, built-in NV3051F controller, optional resistive touch screen and capacitive touch screen (built-in GT911 controller), high image quality, Wide viewing angle, support MIPI interface, 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector) , 3.3V voltage, supports vertical screen display. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc. .
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
