Product type：MONO TFT
Show contents：240x320

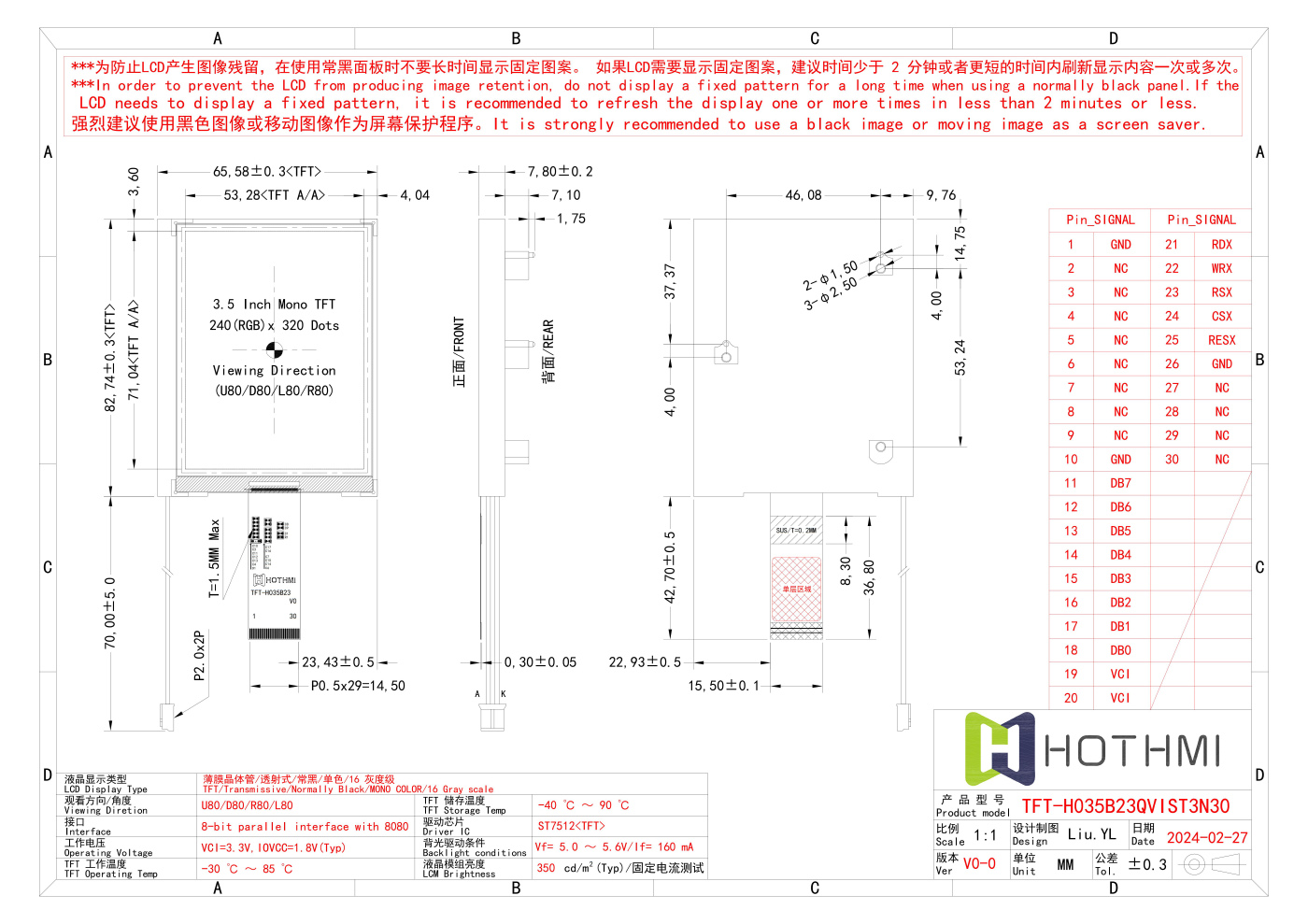

Outline size(mm) ：65.58x82.74x7.8
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：53.28x71.04
Product application：Instrumentation
Visual angle：Full view
Backlight type or brightness：350cd/M2
Connection PIN Number：FPC-30PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-30~85℃
Power supply voltage：3.3V
Driver chip model：ST7512
The 3.5-Inch MONO Black And White TFT LCD Display Is Specially Designed For Vehicle Instrumentation, With Excellent Performance And Adaptability. It Has A Display Resolution Of 240X320 Pixels, A 3.5-Inch Diagonal Size And IPS Full Viewing Angle Technology To Ensure Clear And High-Contrast Image Display From All Angles In The Car. The Overall Dimensions Of The Product Are 65.58x82.74x7.8 Mm, And The AA Size Is 53.28x71.04 Mm, Providing A Compact Design Solution For The Vehicle Space. The Backlight Intensity Is 350cd/M2, Which Can Adapt To Various Lighting Conditions In The Car And Ensure That The Information Display Is Clearly Visible.
The Use Of FPC-30PIN Pins And MCU Interface Makes The Connection With The Vehicle System More Convenient. Special Anti-Static Design (ESD 8KV) Protects The Screen From Static Electricity Interference And Improves Stability And Reliability.
The Operating Temperature Range Is Wide, From -30 Degrees Celsius To 85 Degrees Celsius, Adapting To Various Climate Conditions. The Power Supply Voltage Is 3.3V And Equipped With ST7512 Driver Chip To Ensure Efficient And Stable Performance And Meet The Strict Requirements Of Vehicle-Mounted Instrumentation.
