480x1280 resolution 7.8-inch  TFT LCD display | IPS full-viewing angle HD display | High-brightness sunlight-readable display

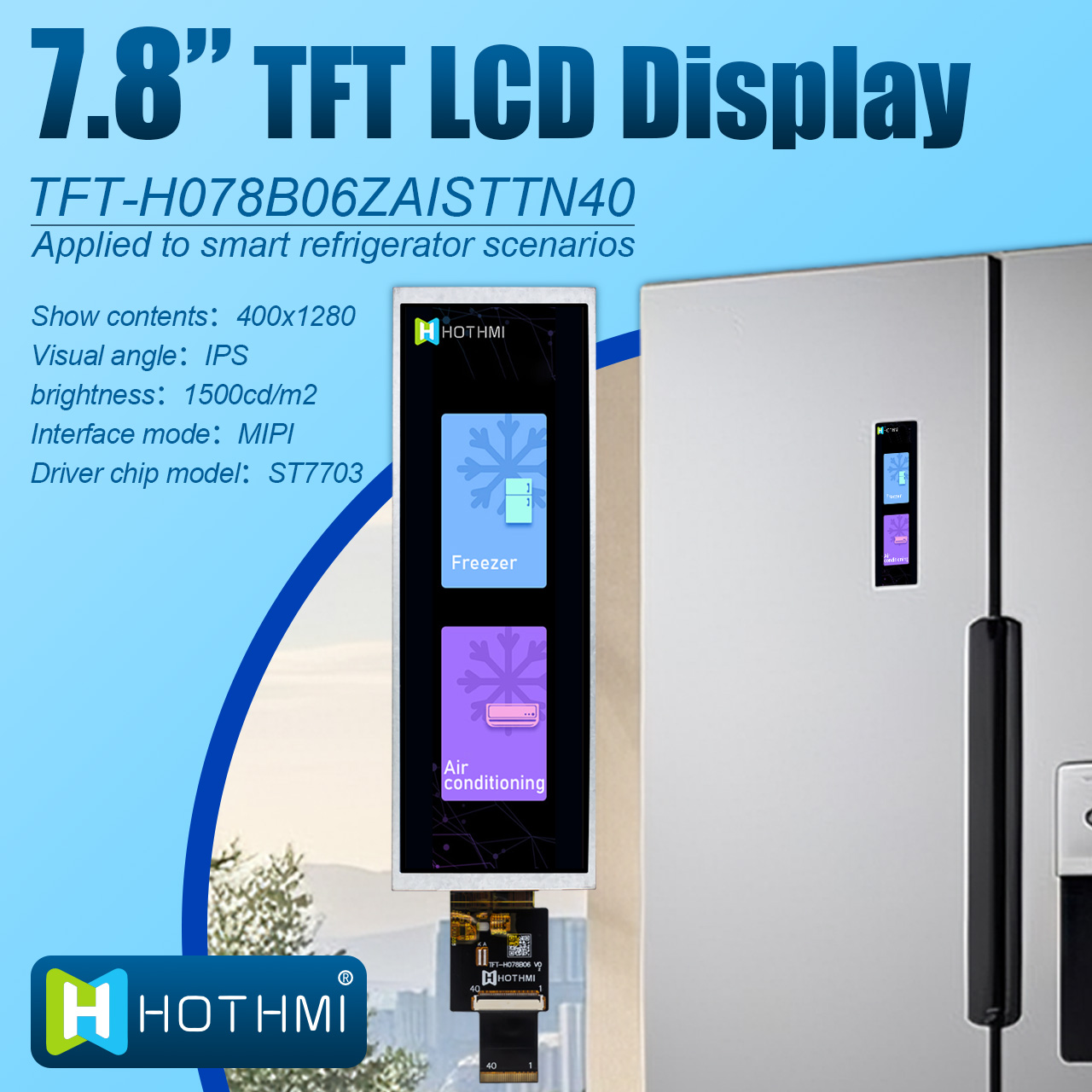

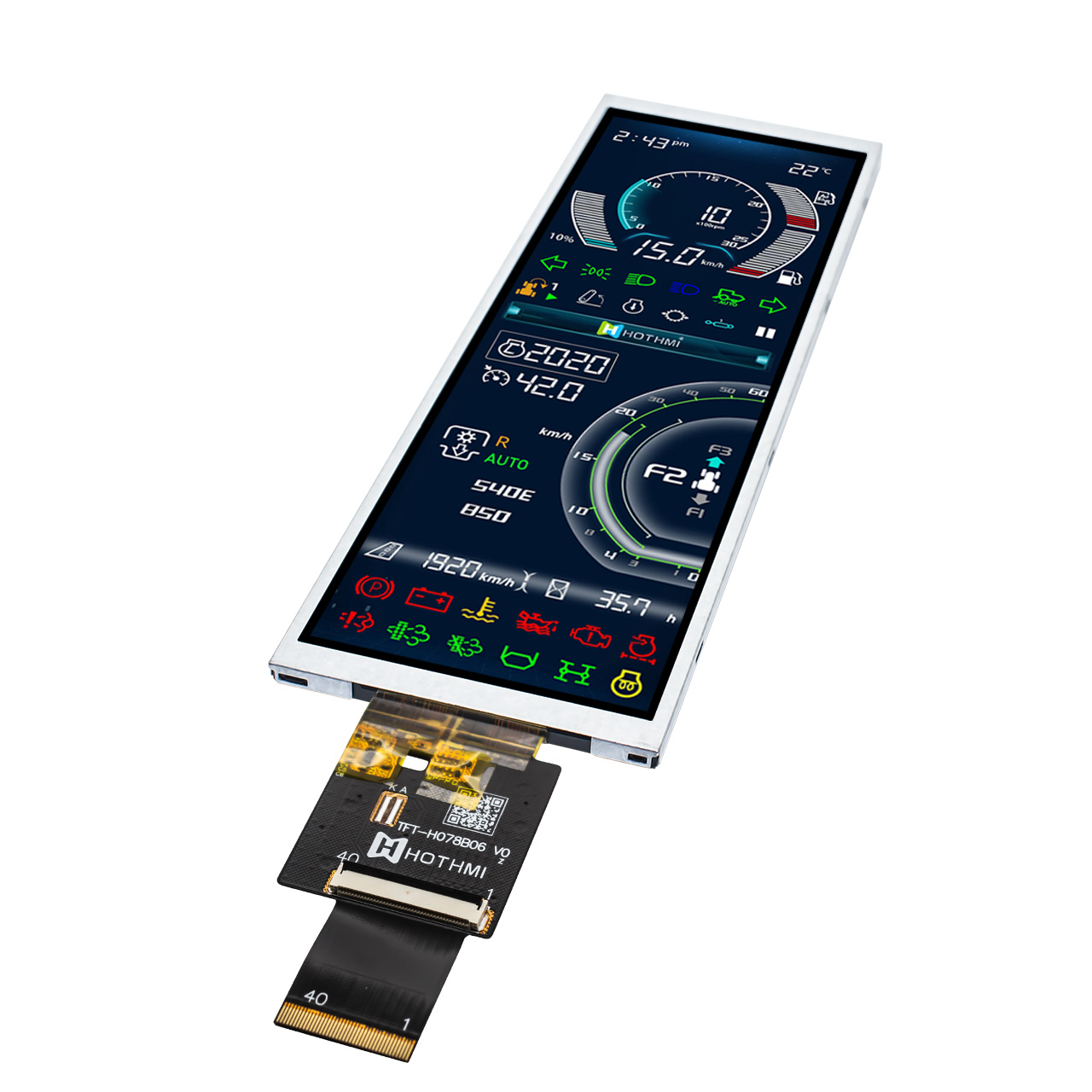

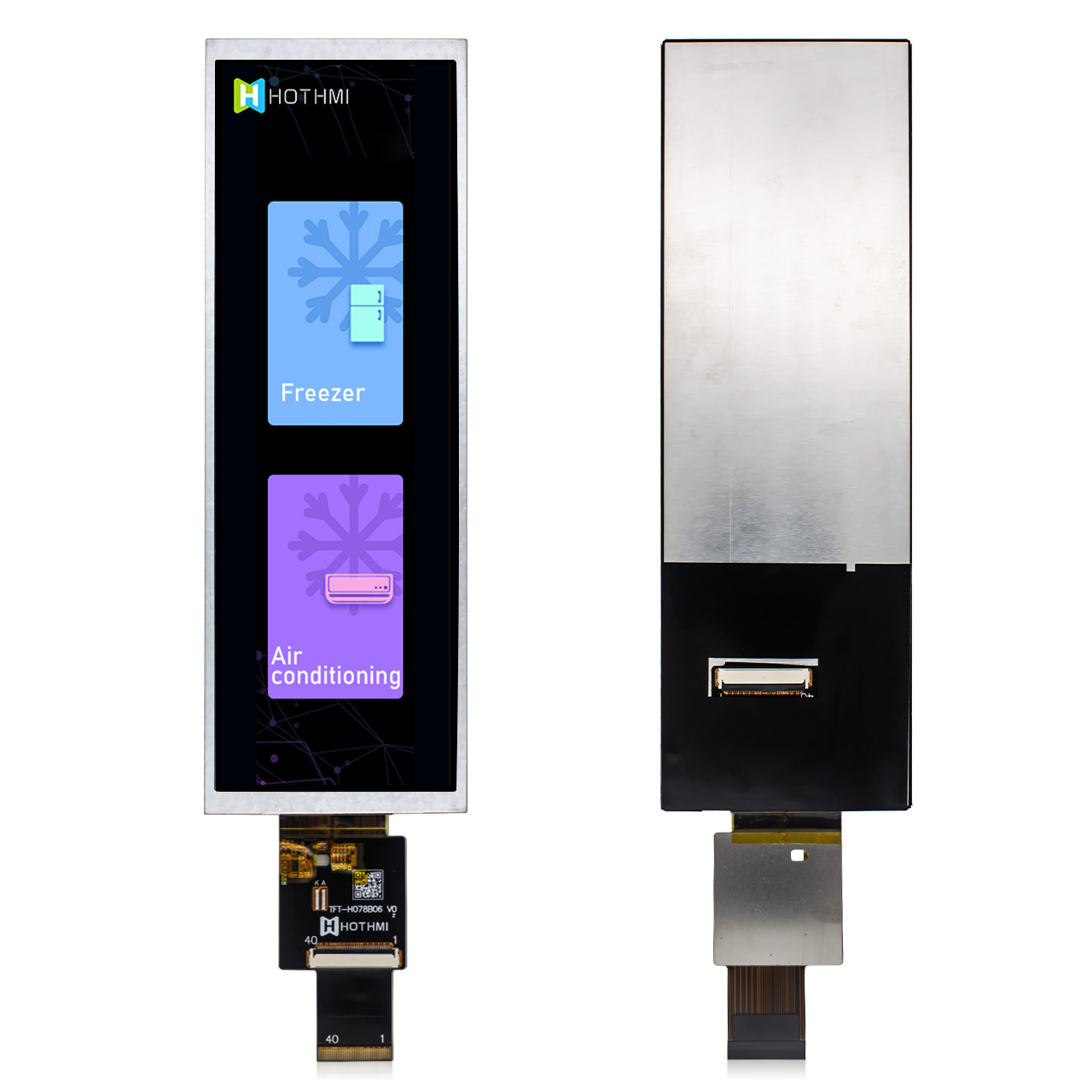

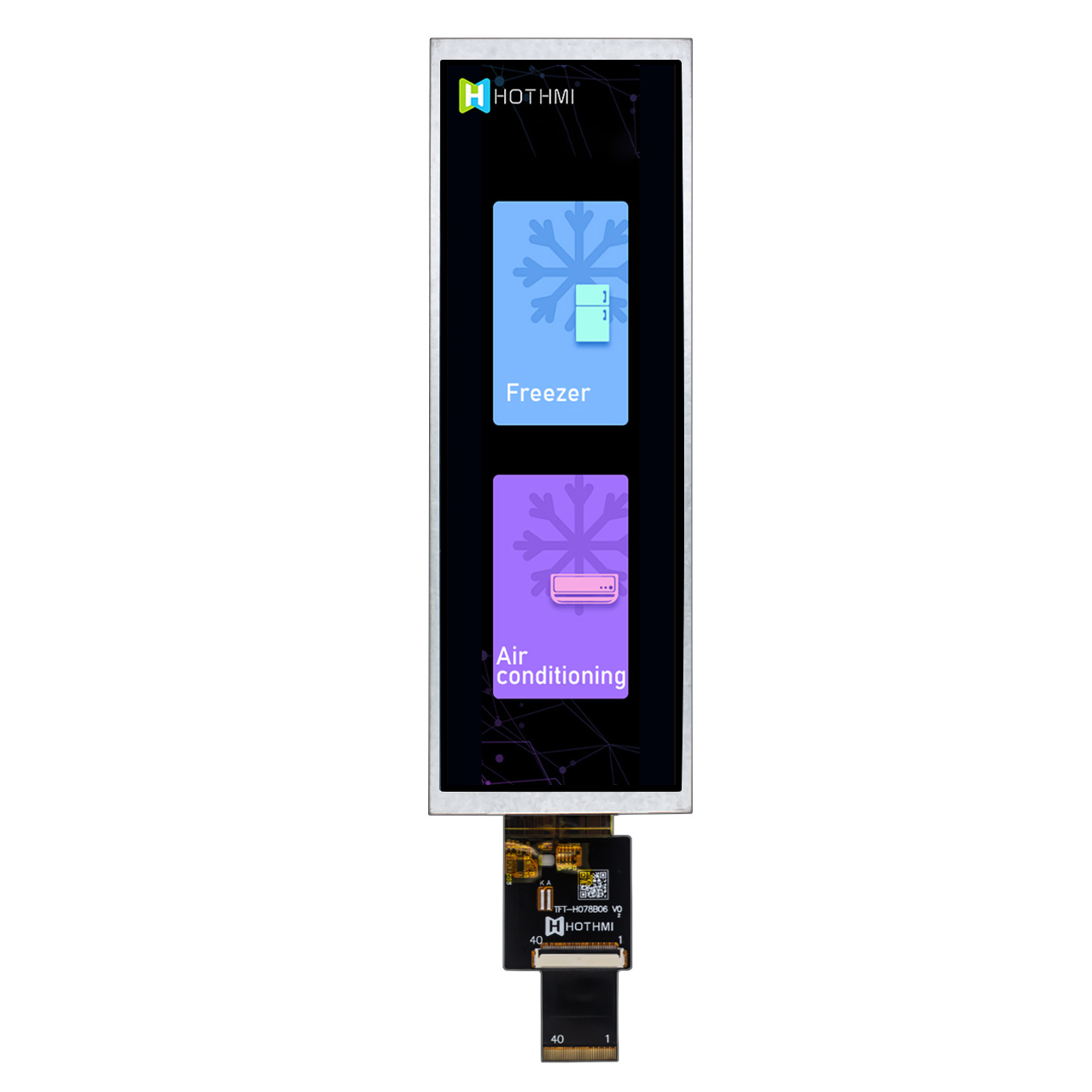

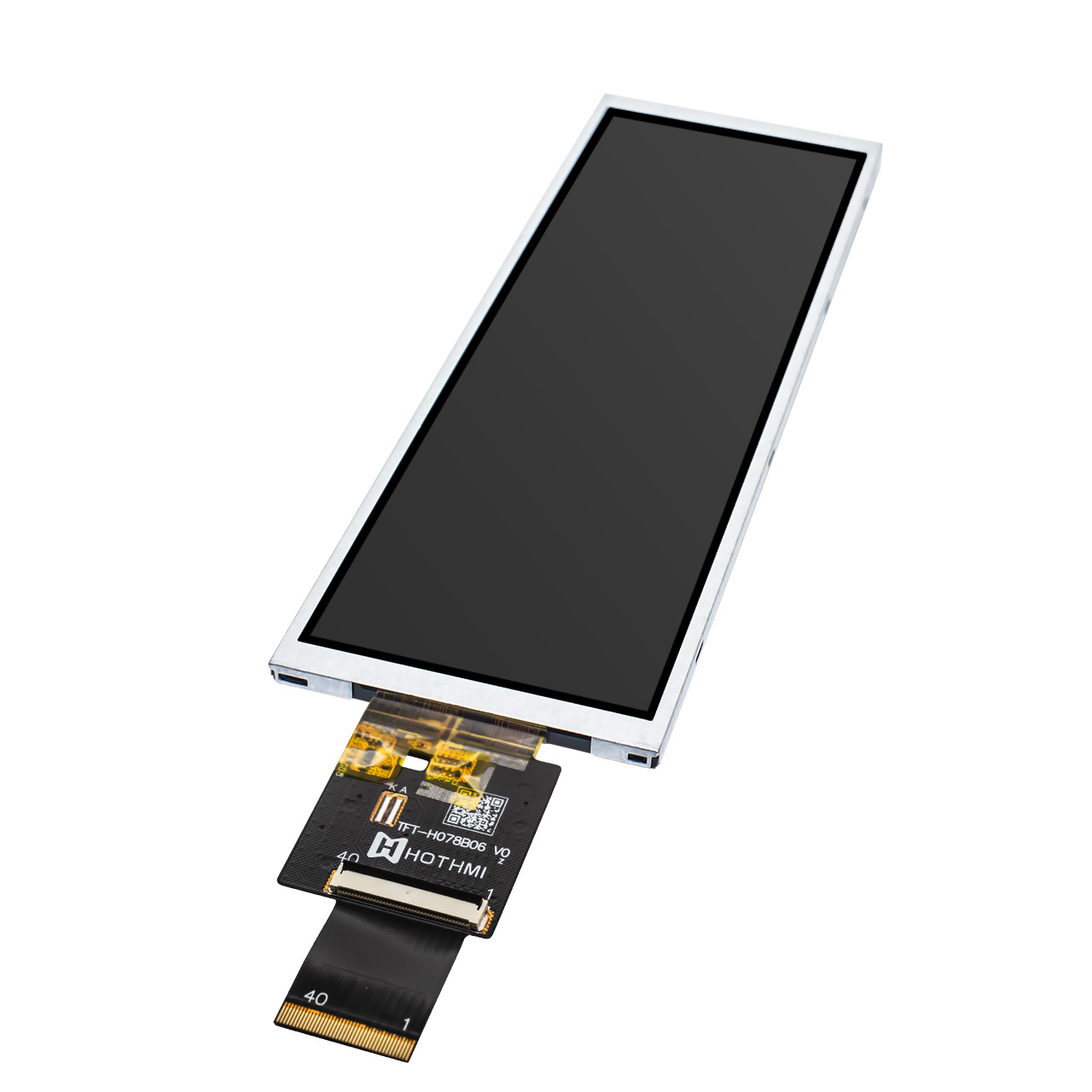

The7.8 inch 400x1280 optical bonding TFT Display TFT-H078B06 LCD module uses a 7.8-inch precision canvas as a carrier to condense the delicate resolution of 400 (RGB) × 1280 pixels in a small space. When your fingertips slide across the screen, the precise arrangement of 164 pixels per inch makes the text as sharp as carvings and the image as detailed as watching micro-carving art through dust-free crystal. This 59.4×190.08mm effective display area embraces the observer with a wide viewing angle of U80/D80/R80/L80. Whether from the top view of the factory console or the side operation of the medical equipment, the color is always full and consistent, and grayscale distortion is rejected - this is due to the high contrast of 900:1 and the 70% NTSC color gamut, so that the blue-green gradient of the diagnostic spectrum and the warning red of the mechanical monitoring have textbook-level accurate restoration.

The ultra-bright backlight engine is the secret weapon to conquer harsh environments. The peak brightness of this 7.8 inch 400x1280 optical bonding TFT Display is 1700 cd/m2，which is like sunlight penetrating the mist. Even in an outdoor construction site or a high-light operating room under direct sunlight, the screen content is still bright and eye-catching. Engineers can flexibly adjust four backlight modes: from the energy-saving 700 cd/m2 quiet mode to the full-power hot sun mode. The LED light source driven by 360mA current is precisely designed for heat dissipation to ensure continuous high-brightness without burning. What is more commendable is its 30,000-hour life commitment - calculated at 8 hours a day, it can be stably used for more than ten years, and the actual light decay of 5,000 hours is only 8%, just like equipping the equipment with an "eternal lighthouse".

The industrial-grade tough gene is deeply rooted in every detail. The MIPI 4-channel high-speed interface transmits data efficiently like a neural network. With the ST7703 driver chip and the FT7511 capacitive touch chip, the response speed is as fast as 30ms, and the fingertip sliding and the screen feedback are almost synchronously coexisting. The module does not freeze in the extremely cold freezer at -30℃, does not turn white in the high-temperature workshop at +70℃, and remains stable even after withstanding the impact vibration of 980m/s2 and ±8kV electrostatic attack. The specially designed anti-image retention mechanism avoids fixed screen imprinting through the intelligent refresh algorithm, which is like injecting the vitality of "self-repair" into the screen.

From precision medical equipment to car navigation systems, from outdoor self-service terminals to industrial control panels, TFT-H078B06 integrates into multiple scenarios with its ultra-thin body of 4.7mm to 6.4mm. Its modular design provides three configuration options: a minimalist version without touch, a sensitive version with capacitive touch, or a protective glove adaptation version with resistive touch, which can be customized by users. When you stare at this screen, you see not only a display area of 59.4mm×190.08mm, but also a visual fortress built by Xinhongtai Technology with professional precipitation-anchored clearly in the torrent of data and reliable at the extreme of the environment.
