Product type：TFT
Show contents：1024x600
Outline size(mm) ：164.9x100.0x5.29
Size of View Window(mm)：7.0
Display size(mm) ：7.0
Effective size(mm)：154.21x85.92
Product application：Technical equipment, office equipment, access control
Visual angle：IPS
Backlight type or brightness：1250cd/m2
Connection PIN Number：FPC-40 Pin
Interface mode：LVDS/MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V

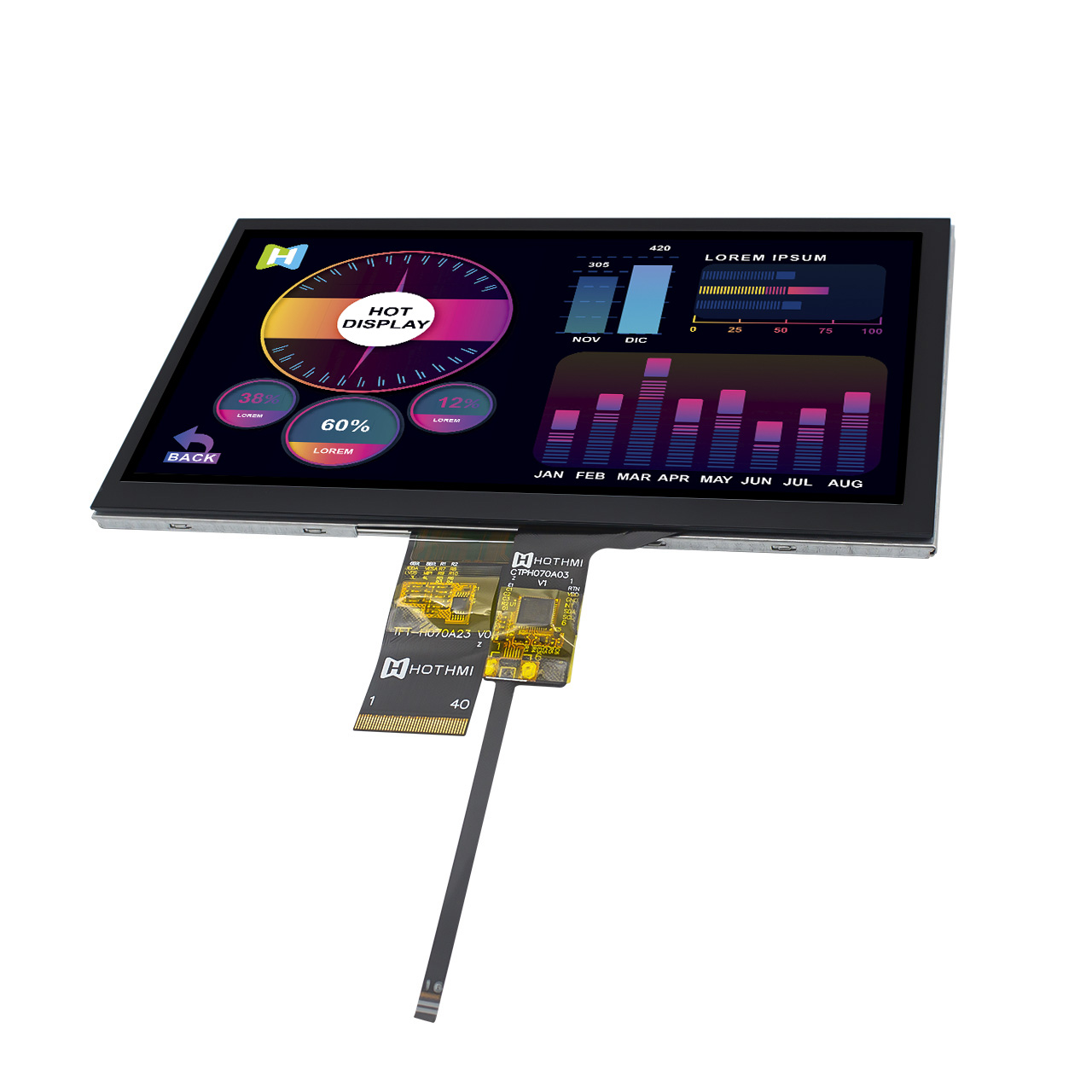

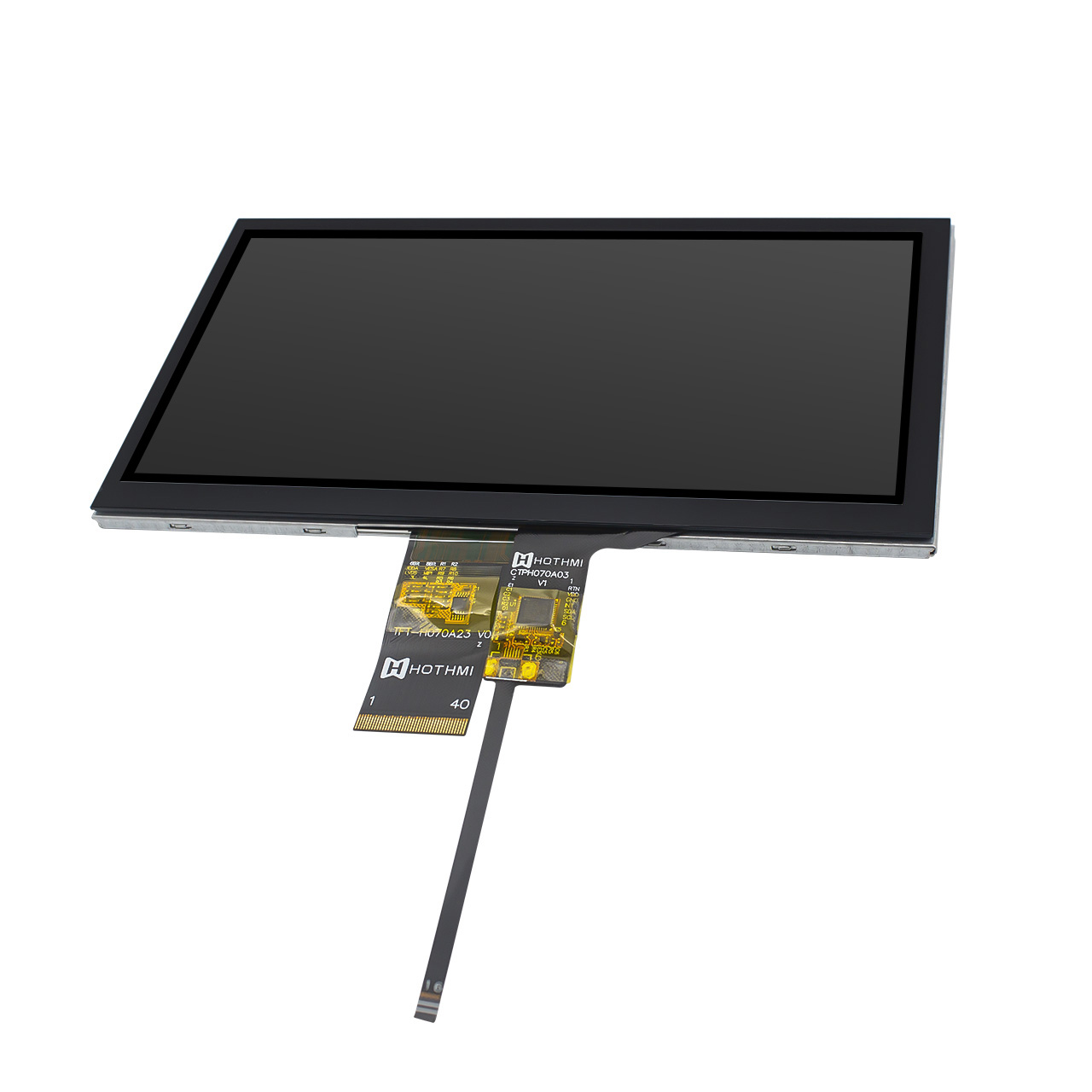

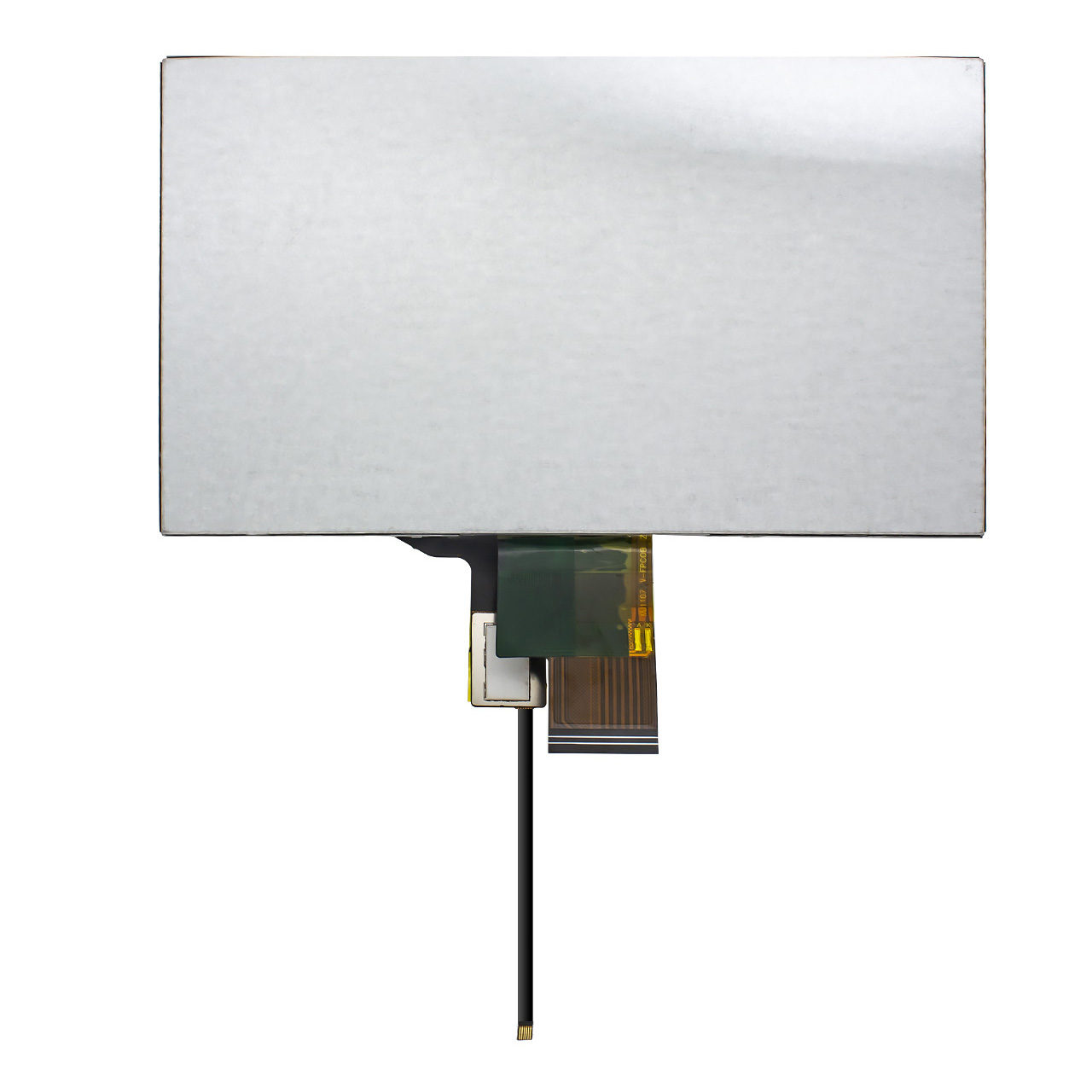

This 7.0"TFT LCD Display ，which is optical binding，uses 1024x600 resolution, with an active display area of 154.21mm × 85.92mm and a module size of 164.90mm × 100.00mm × 5.29mm. The display supports wide viewing angles (U85/D85/R85/L85), provides 1 Port LVDS (default) or MIPI interface options, and the capacitive touch screen driver chip is GT911, which supports multi-touch function. The module weight is about 163.50 grams ± 5% with a capacitive touch screen, depending on the configuration.
In terms of electrical characteristics, the digital power supply voltage range of theThis 7.0"TFT LCD Display ，which is optical binding， is 3.0V to 3.3V, the operating temperature covers -20℃ to +70℃, and the storage temperature range is -40℃ to +80℃. The backlight part provides two configurations: one with an operating voltage of 9.0V to 10.2V and a typical brightness of 650cd/m2 (with a touch screen); the other with an operating voltage of 18.0V to 19.2V and a typical brightness of 1250cd/m2 (with a touch screen), and the LED life can reach 30,000 hours at 25°C. In terms of optical performance, the display contrast is typically 1000:1, the color gamut is NTSC 50%, the response time is 30ms (typical value), and it supports a wide viewing angle of 85 degrees in both horizontal and vertical directions.
The interface design of the This 7.0"TFT LCD Display ，which is optical binding， flexible, supporting 1024x600 LVDS and MIPI dual modes, and users can select the interface type and scanning direction through resistor configuration. To prevent image retention, it is recommended to avoid displaying fixed patterns for a long time and refresh the screen content regularly. Overall, this display combines high performance and reliability, and is suitable for a variety of application scenarios such as industrial control, medical equipment, and vehicle-mounted displays.
